Small forged valves gate, globe, and check valves

Velan small forged valves offer a range of small forged gate, globe, check, angle, Y-pattern, bellows seal, and cryogenic valves. They are perfect for low to high-temperature and pressure applications, especially where space or weight savings matter. Designed for reliable performance in demanding  environments. Complies to API 602 and ASME B16.34 standards. Also available for nuclear class 1, 2, and 3 and safety related applications.

Several insulated industrial pipes with blue-handled valves and warning labels are installed in a facility, with arrows indicating flow direction. The pipes run vertically and horizontally in a complex arrangement.

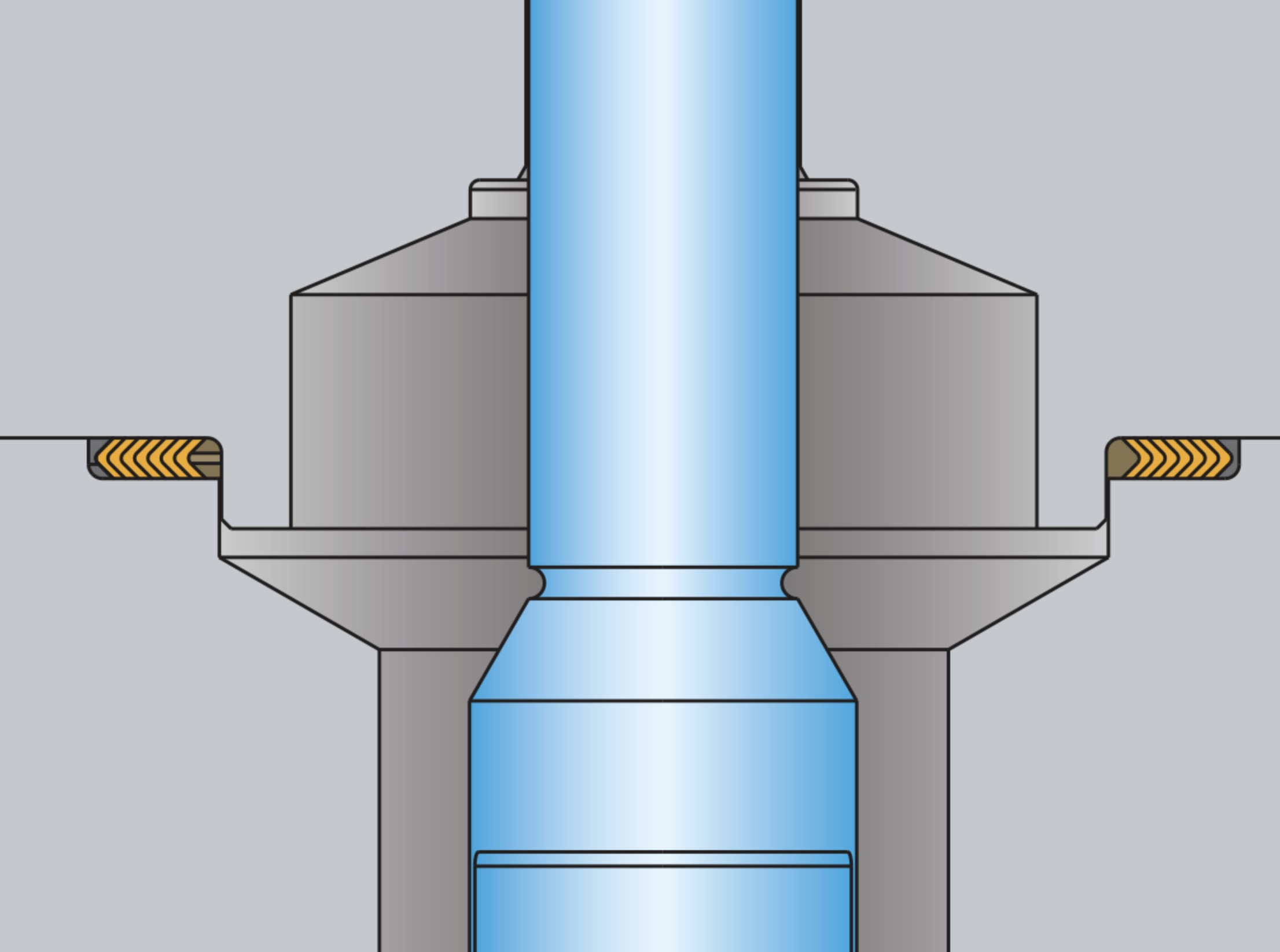

Encapsulated gasket

Illustration of a mechanical seal system with a blue shaft. The shaft is encircled by gray housing. Gold-colored springs are visible on either side, indicating tension in the assembly. The design shows a cross-sectional view of the components.

Body and bonnet designed with a fully encapsulated gasket to help reduce oxidation and mechanical degradation.

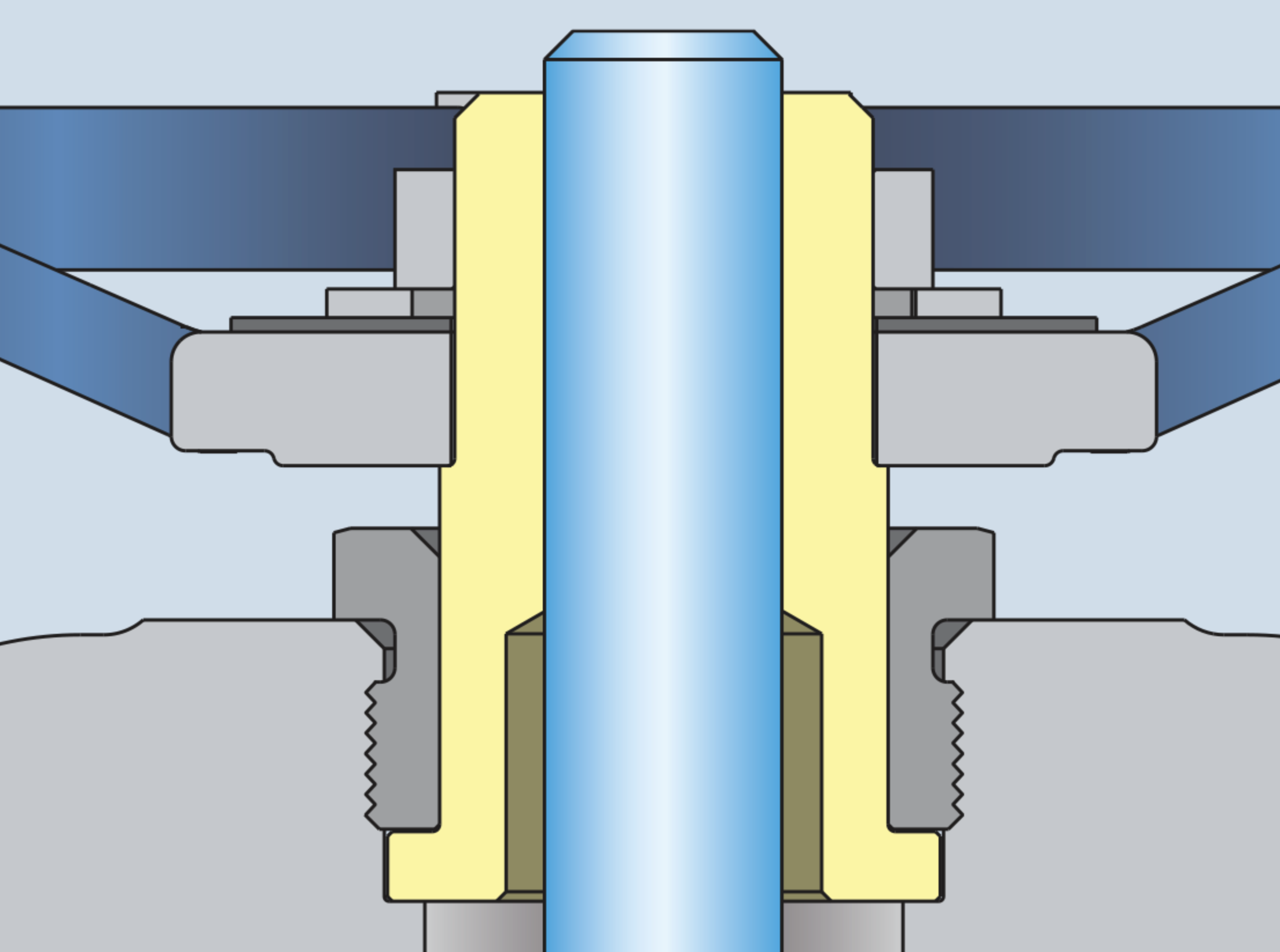

Renewable stem drive

Illustration of a mechanical assembly showing a blue cylindrical shaft passing through a yellow housing with gray components and blue braces. The image highlights the structure and interaction of the parts within the assembly.

Two-piece stem drive that allows replacement of the stem nut in-line and lets you remove the handwheel without affecting the valve position while allowing better lubrication control.

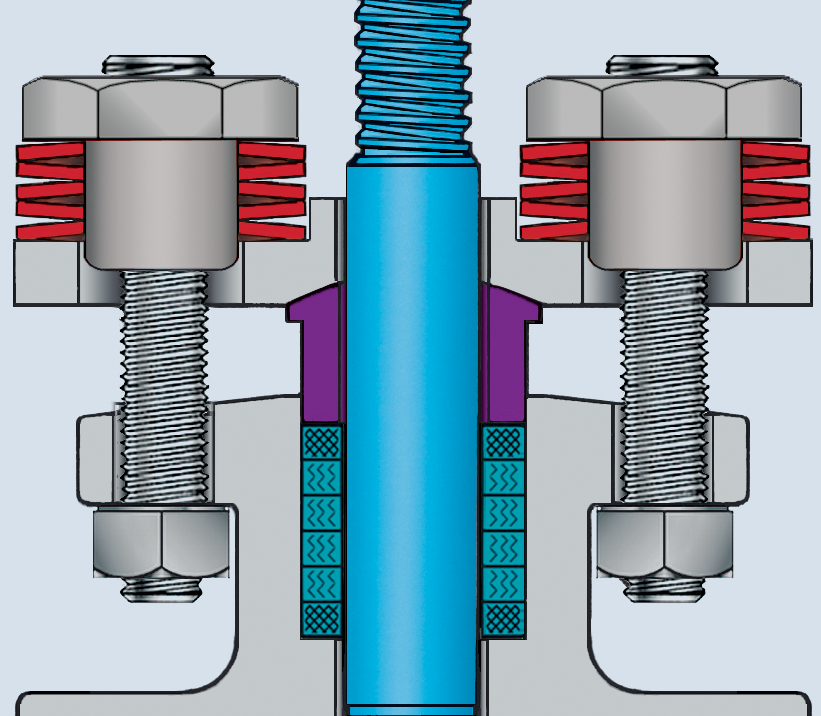

Safer and tighter stem seal

Cross-section of a mechanical assembly showing a threaded blue shaft, two grey bolts with red springs on each side, and purple and teal internal components, possibly illustrating a clamping or adjustment mechanism.

Hardened, ground stem with a two‑piece self‑aligning gland; each packing ring is individually inserted and compressed for improved tightness. Full‑length, corrosion‑resistant threaded bolts provide high packing stress (optional live‑loading), and a positive backseat lets the stem bevel engage the integral backseat for reliable performance.

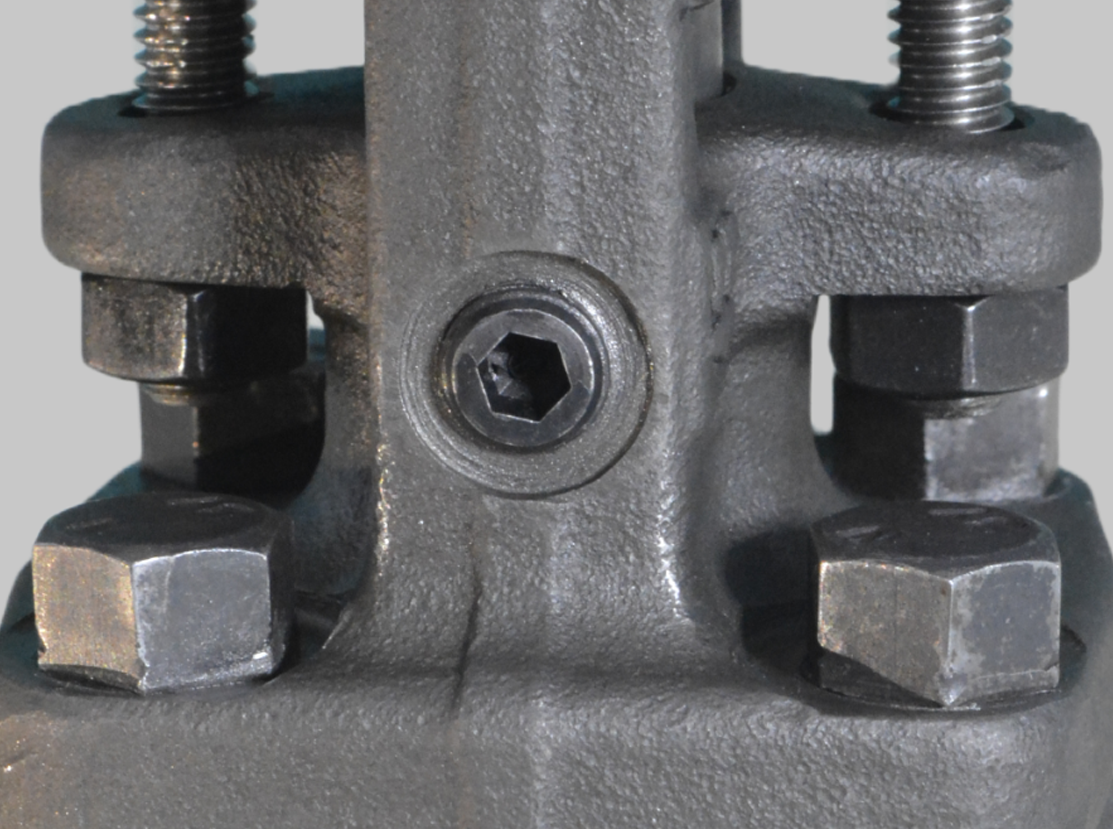

Field injection ports (FIP) & Packing

Close-up of an industrial metal component with bolts, a central hex key socket, and dark textured surface. The setup suggests it's part of a larger mechanical assembly.

Field injection ports (FIP) are now a standard feature on small-forged bolted bonnet gate and globe valve designs for faster, safer and easier drill and tap injection repairs. Original packing rings are pre-compressed in the packing chamber to ensure equal stress distribution and effectiveness of all rings and a high integrity seal.

PressureASME 150-4500
SizeNPS 1/4-4 (DN 8-100)
Tests and Design StandardsASME B16.10 Flanged Long or Short Pattern, ASME B16.11, ASME B16.20, ASME B16.25, ASME B16.34, ASME B16.5, ASME Section III, ASME Section VIII, ASME Section IX, ISO 15848-1, API 602, API 609, API 622, API 624, API 598, ISO 28921, MSS SP-134, BS 6364
Fugitive EmissionsDual-qualified to API 624 and ISO 15848-1 fugitive emissions requirements. All graphite packings are qualified to API 622 requirements.
