API 602 Forged Steel Globe Valve

Features & Benefits

• Complies to API 602 and ASME B16.34 standards.
• A compact but extremely sturdy design for high pressure-temperature service.
• Available with bolted or welded bonnet.
• Meets API 624 and ISO 15848-1 fugitive emissions standards.
• Packing rings are pre-compressed in the packing chamber to ensure equal stress distribution, effectiveness of all rings and a high integrity seal.
• For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (body/bonnet threads and strength-weld).
• CoCr alloy hardfaced disc (optional) ensures low friction and long service life.
• Body guided disc eliminates side thrust and provides longer disc, seat, and body life.

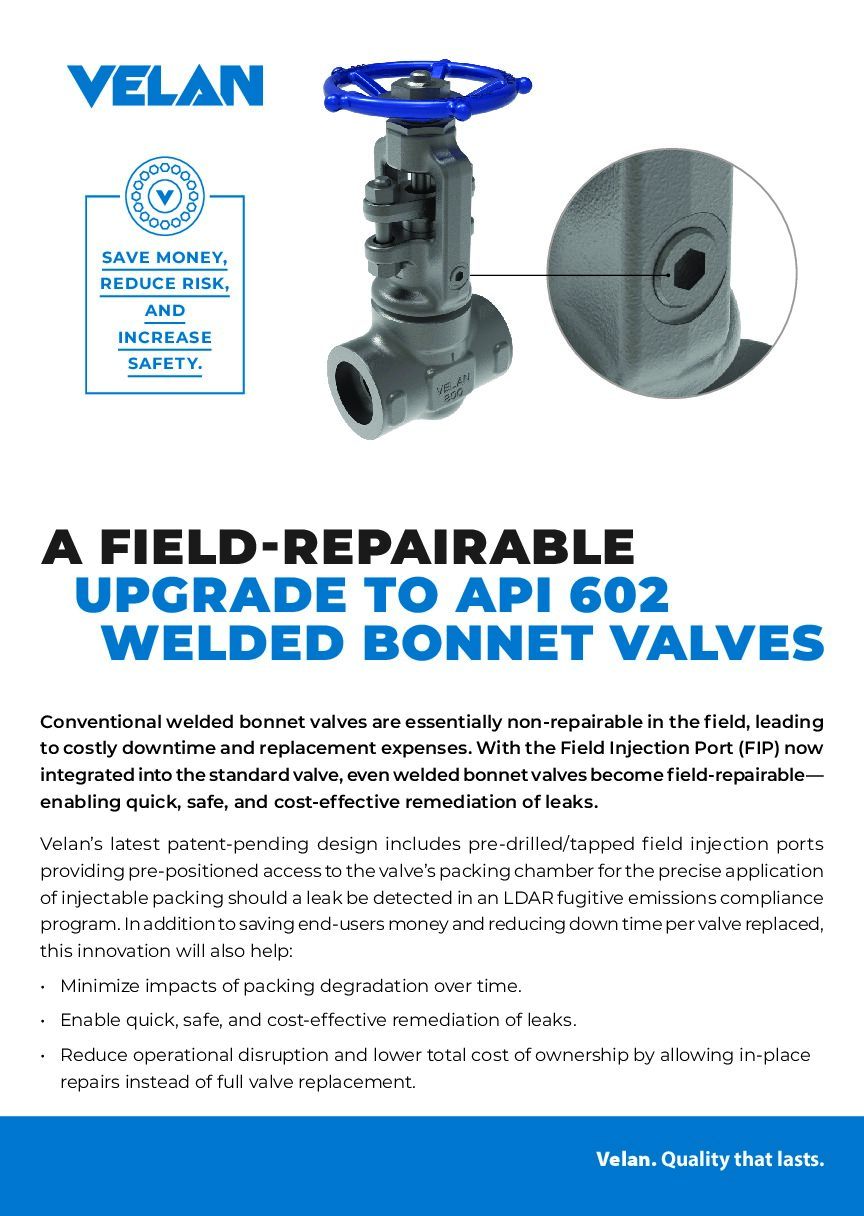

• Pre-positioned field injection ports for precise application of low emissions (Low-E) injectable packing through the bonnet (applies to bolted bonnet globe NPS 1/4–2 (DN 8–50) Class 150–1500).
• Available disc designs: stop, stop check, needle, and flow control.
• Optional designs available with double packing, leak-off connection, and live-loading.
