Corrosion resistant cast stainless steel valves

Velan corrosion-resistant cast stainless steel valves meet API 603 gate and ASME B16.34 globe and check standards. Available in bolted and welded extended bonnet styles that excel in cryogenic applications and are ideal for petrochemical, power generation, and wastewater process piping.

Fugitive Emissions

A circular logo with "VELAN" in blue letters, featuring a sunset over mountains and water. The green border reads "LOW EMISSION" at the top and "ENVIRONMENTALLY SAFE" at the bottom.

All graphite packed gate and homologous globe valves are dual qualified to API 624 and Iso 15848-1.

Design

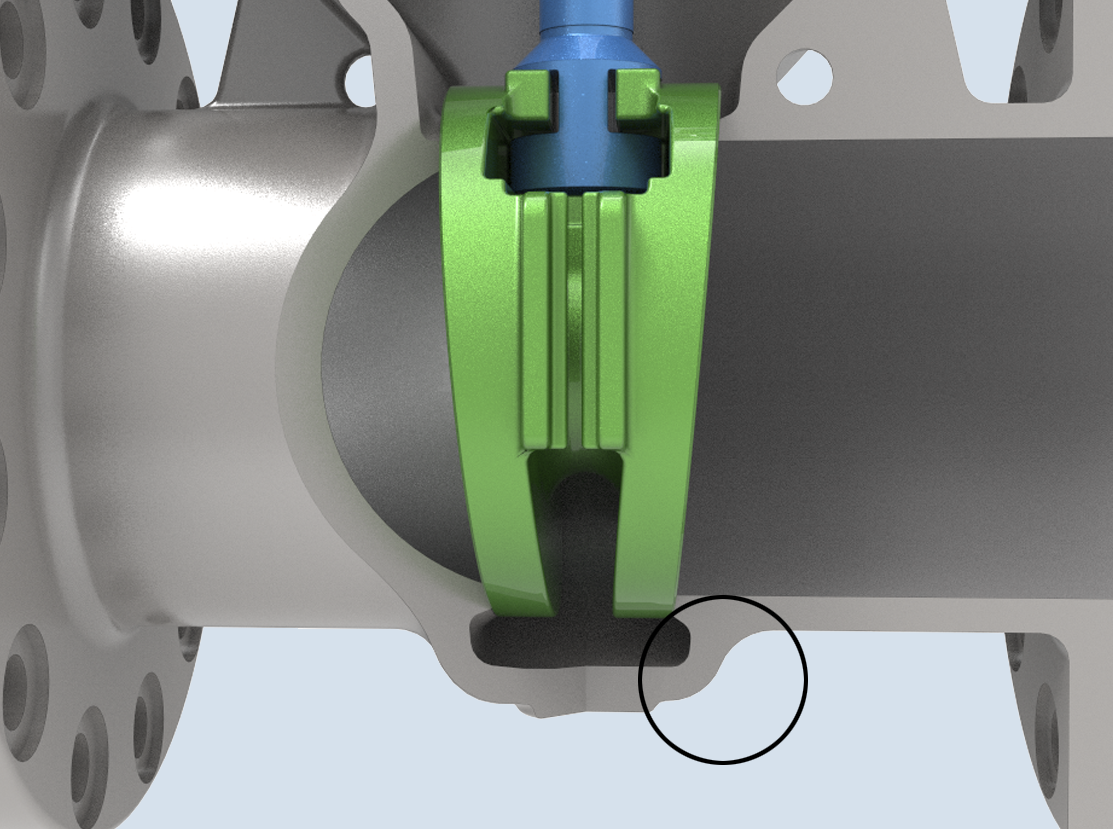

A close-up of a mechanical component featuring a silver cylindrical part with a detailed green and blue joint assembly. A black circle highlights a specific section of the component, indicating an area of interest.

ASME B16.34 wall thickness available in broad range of corrosion resistant materials (316/316L, Hastelloy, Alloy 20, etc.)

Seat

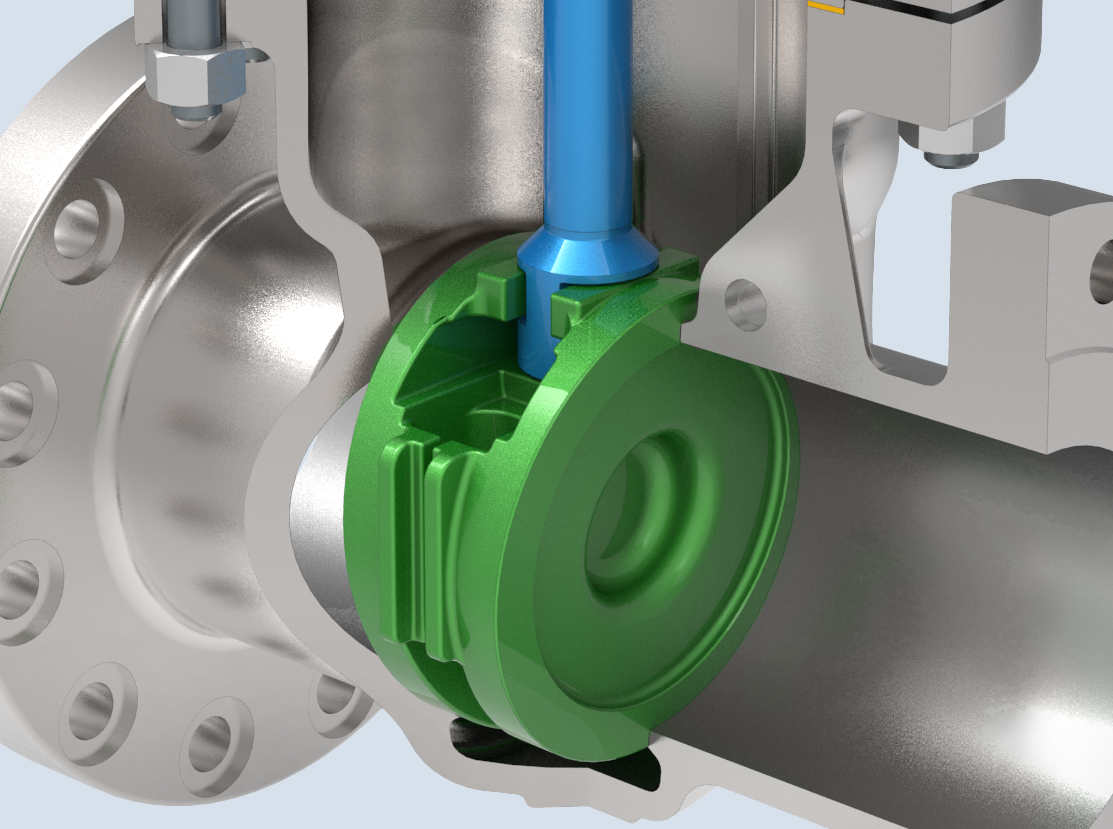

A detailed close-up of a valve mechanism, featuring silver metal components and a central blue shaft. A green circular component is prominently displayed in the center, illustrating the valve's internal structure and function.

Integral seats machined from the body eliminate leak paths. Available with CoCr alloy hard facing on seating surfaces for longer service life.

Stem/Packing Gland

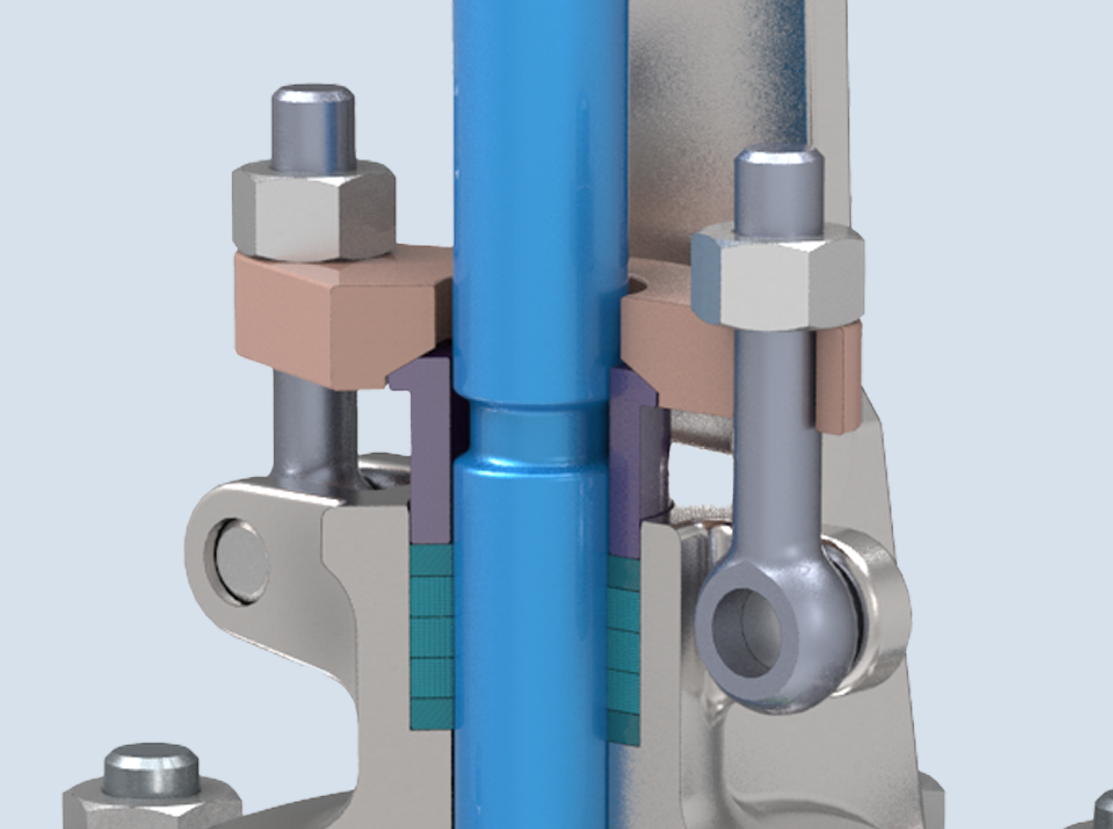

Close-up of a mechanical assembly featuring a blue cylindrical component held by gray metallic brackets and bolts. The assembly includes pink and purple cushioning elements, with a reflective surface visible on the right side.

Rising stem with precision ACME threads and burnished finish. Packing gland has two-piece construction for easy alignment.

PressureASME150-600
SizeNPS 1/2-24 (DN 15-600)
Tests and Design StandardsASME B16.10 Flanged Long or Short Pattern, ASME B16.11, ASME B16.20, ASME B16.25, ASME B16.34, ASME B16.5, ASME Section III, ASME Section VIII, ASME Section IX, ISO 15848-1, API 603, API 609, API 622, API 624, API 598, MSS SP-134, BS 6364
